Host model | OPS-10U | Host size | 120mm(L)*180mm(W)*30mm(H) |
CPU | Support 10th generation Comet Lake CPUs: I3-10110U, I5-10210U, I7-10510U, etc | | |
Memory | 1*NB-DDR4 SODIMM memory slot, supports 2133/2400/2666MHz memory, maximum support 16GB | | |
Power supply | 1*DC_IN ; 1*ATX(4Pin)
Supports 12V/19V voltage, with a DC head inner diameter of 2.5MM
The full load power consumption of the motherboard is about 65W. It is recommended to use a power supply of 12V/7A or 19V5A or
above | | |
Display function | Integrated Intel UHD Graphics ultra core graphics card, supporting single display, dual display replication, dual display
expansion, single display under DOS
1*HDMI 1.4 interface: Supports 4K resolution of 4096/3840* 2160@30Hz
1*DP interface(optional): Supports 4K resolution of 4096/3840* 2160@60Hz
1*HDMI 2.0 interface(Sub card end): Supports 4K resolution of 4096/3840* 2160@60Hz
1*DP interface(Sub card end): Supports 4K resolution of 4096/3840* 2160@60Hz
The sub card side HDMI 2.0 interface and sub card side DP interface are two options, default HDMI | | |

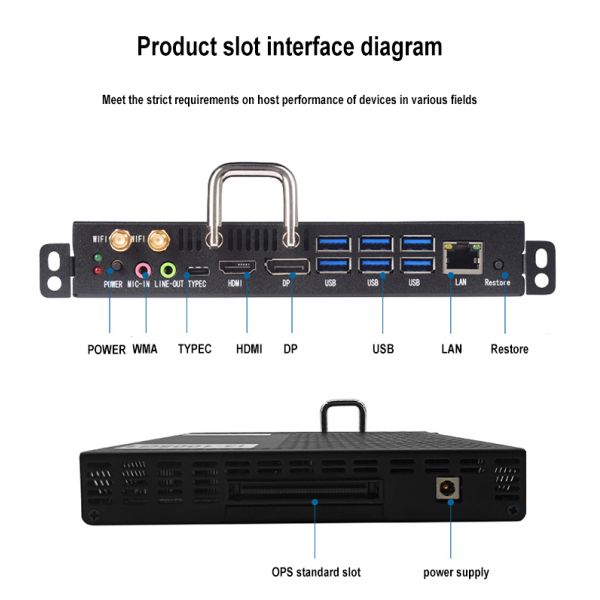

Network function | 1*RJ45 LAN interface: Realtek 8111H Gigabit Ethernet card chip, supporting network wake-up and PCIe diskless boot function
1*Mini-PCIE interface: Supports WIFI/Bluetooth/3G/4G modules | | |
Hard disk | 1*JSATA interface: 2.5-inch hard drive slot, can directly connect to 2.5-inch hard drive, supports SATA 3.0
1*MSATA interface: Supports MSATA disks and SATA 3.0 | | |
Sound function | Integrated Realtek ALC662/660 HD digital audio decoder, 6-channel high fidelity audio controller
1*LIN_OUT interface: Supports audio output (green)
1*MIC_IN interface: Supports microphone input (red) | | |
USB function | 2*USB3.1 interface: Rear standard USB 3.1 Gen2 interface, with a maximum transmission bandwidth of 10.0Gbps
2*USB2.0 interface: Rear standard USB 2.0 interface, maximum transmission bandwidth of 480Mbps (60MB/s)
1*Type-C interface: Standard Type-C interface, supporting USB 3.1 Gen2, with a maximum transmission bandwidth of 10.0Gbps
1*F_USB1pin: Front USB 2.0 pins, one set with 2 * USB 2.0 (9Pin,2*5Pin,2.0mm) | | |
Switch function | 1*F_PANEL pin: Switch, power light, hard disk light, restart pin (9Pin,2*5Pin,2.0mm)
1*PWR_SW button: switch button
1*AUTO_SW pin: Hardware control power on plug (3Pin,1*3Pin,2.0mm)
1*RST_SW1 button: Support hardware restart | | |
Other I/O | 1*COM1 pin: Serial port, only supports RS232 (9Pin,2*5Pin,2.0mm)
The COM1 on the motherboard side and the TTL on the daughter card side are two options, with the default support for TTL on the
daughter card side
1*JCOM1 pin: Control COM1 pin 9 voltage 0V/5V/12V optional(6Pin,2*3Pin,2.0mm)
1*SIM_CARD card slot: Supports SIM card, SIM card is required when using 3G/4G
1*JCMOS button: Motherboard reset and discharge button
1*CLR_CMOS pin: Motherboard reset and discharge pins (3Pin,1*3Pin,2.0mm)
1*CPU_FAN pin: CPU fan pin, 5V, supports temperature control (4Pin,1*4Pin,1.25mm)
1*OPS interface: Standard 80Pin OPS interface
1*One click restore button: Support one click system restoration
1*LED: Power and hard drive status indicator lights | | |
Operating environment | Working temperature: -20 ℃~60 ℃; Working humidity: 5%~95% relative humidity, no condensation | | |
BIOS | AMI BIOS, Support power on, timed power on, and intelligent recognition of remote power on/off devices | | |
Watch Dog | Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds) | | |
operating system | Supports Win10 60bit, Linux, etc | | |
